FAMILY CS

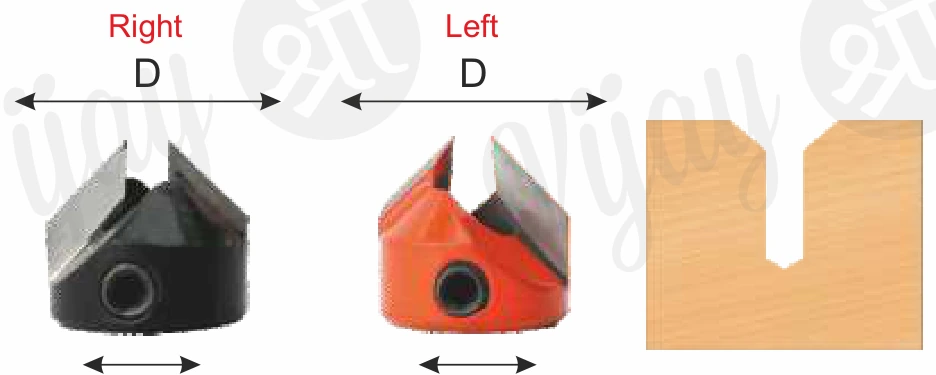

T.C.T Counter Shank
Use for
Published as verified right/left source-code pairs. Cutting and shank diameters are retained exactly from the controlled source.
Precision dimensionsExact SKU selectionQuote on request
9 available variants
CD/dSD/DRotation
Choose your dimensions.
Published configurations
9 variants shownView quote list (0) →
| Rakecraft SKU | Code no. | CD/d | SD/D | Rotation | Quantity | Select |
|---|---|---|---|---|---|---|
| RC-P09-CS-CS4RCS4L | CS - 4R / CS - 4L | 4 mm | 12 mm | R/L pair | ||
| RC-P09-CS-CS5RCS5L | CS - 5R / CS - 5L | 5 mm | 14 mm | R/L pair | ||
| RC-P09-CS-CS6RCS6L | CS - 6R / CS - 6L | 6 mm | 14 mm | R/L pair | ||
| RC-P09-CS-CS7RCS7L | CS - 7R / CS - 7L | 7 mm | 16 mm | R/L pair | ||
| RC-P09-CS-CS8RCS8L | CS - 8R / CS - 8L | 8 mm | 18 mm | R/L pair | ||
| RC-P09-CS-CS9RCS9L | CS - 9R / CS - 9L | 9 mm | 19 mm | R/L pair | ||
| RC-P09-CS-CS10RCS10L | CS - 10R / CS - 10L | 10 mm | 20 mm | R/L pair | ||
| RC-P09-CS-CS11RCS11L | CS - 11R / CS - 11L | 11 mm | 22 mm | R/L pair | ||
| RC-P09-CS-CS12RCS12L | CS - 12R / CS - 12L | 12 mm | 25 mm | R/L pair |
Reference catalog: pages 66. View catalog ↗
