FAMILY TH
Through Hole Bits
Use for
Request a supplier-confirmed specification for through hole bits. Material compatibility and performance have not yet been verified by Rakecraft.
Reference dimensionsExact SKU selectionQuote on request
14 reference variants
THThrough Hole Bits

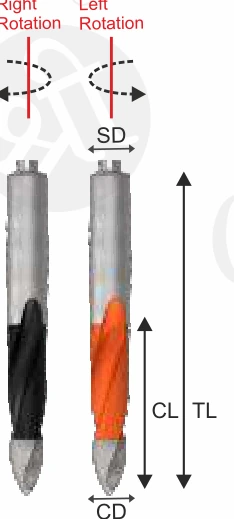

CD/dSD/DTLRotation
Choose your dimensions.
Published configurations
14 variants shownView quote list (0) →
| Rakecraft SKU | Code no. | CD/d | SD/D | TL | Rotation | Quantity | Select |
|---|---|---|---|---|---|---|---|
| RC-P09-TH-TH5R | TH - 5R | 5 mm | 10 mm | 57.5/70 mm | R | ||
| RC-P09-TH-TH5L | TH - 5L | 5 mm | 10 mm | 57.5/70 mm | L | ||
| RC-P09-TH-TH6R | TH - 6R | 6 mm | 10 mm | 57.5/70 mm | R | ||
| RC-P09-TH-TH6L | TH - 6L | 6 mm | 10 mm | 57.5/70 mm | L | ||
| RC-P09-TH-TH7R | TH - 7R | 7 mm | 10 mm | 57.5/70 mm | R | ||
| RC-P09-TH-TH7L | TH - 7L | 7 mm | 10 mm | 57.5/70 mm | L | ||
| RC-P09-TH-TH8R | TH - 8R | 8 mm | 10 mm | 57.5/70 mm | R | ||
| RC-P09-TH-TH8L | TH - 8L | 8 mm | 10 mm | 57.5/70 mm | L | ||
| RC-P09-TH-TH10R | TH - 10R | 10 mm | 10 mm | 57.5/70 mm | R | ||
| RC-P09-TH-TH10L | TH - 10L | 10 mm | 10 mm | 57.5/70 mm | L | ||
| RC-P09-TH-TH12R | TH - 12R | 12 mm | 10 mm | 57.5/70 mm | R | ||
| RC-P09-TH-TH12L | TH - 12L | 12 mm | 10 mm | 57.5/70 mm | L | ||
| RC-P09-TH-TH15R | TH - 15R | 15 mm | 10 mm | 57.5/71 mm | R | ||
| RC-P09-TH-TH15L | TH - 15L | 15 mm | 10 mm | 57.5/70 mm | L |
Technical and selection notes
Reference dimensions require supplier and buyer confirmation before ordering. No stock, manufacturing, warranty or performance claim is made.
Reference catalog: pages 65. Return to reference catalog →
