FAMILY VT.CT.07

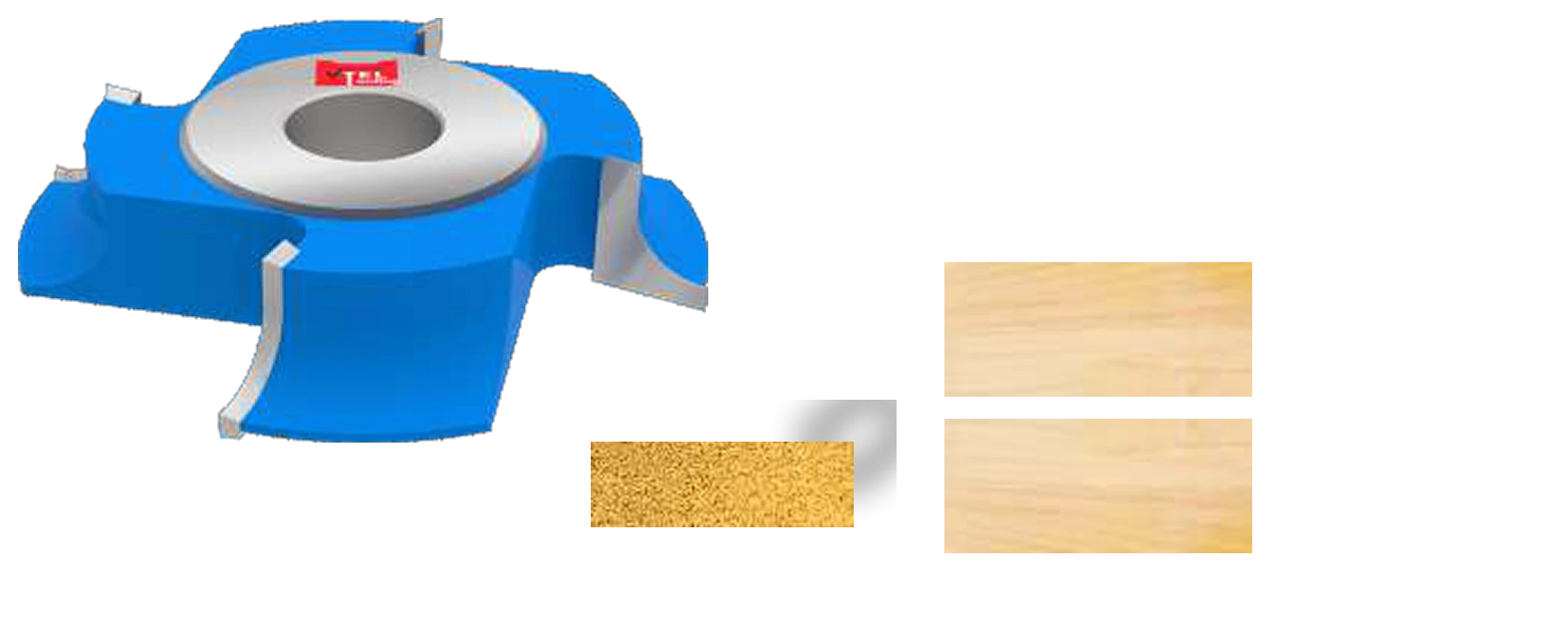

TCT Brazed Corner Radius With Straight Trim Cutter
Use for
Radius-with-straight-trim profiling on solid wood, plywood, particle board and MDF using spindle moulders and shaper machines. Select by verified cutter thickness and radius while retaining the common 125 mm diameter, compound 30/35 mm bore and four-tooth geometry.
Precision dimensionsExact SKU selectionQuote on request
6 available variants
Diameter (D)BoreThicknessRadiusTeeth
Choose your dimensions.
Diameter × Bore × Thickness × Radius × Teeth (mm)
6 variants shownView quote list (0) →
| Rakecraft SKU | Code no. | Diameter (D) | Bore | Thickness | Radius | Teeth | Quantity | Select |
|---|---|---|---|---|---|---|---|---|
| RC-P35-VTCT07-VTCT071809 | VT.CT.07.1809 | 125 | 30/35 | 18 | R9 | 4 | ||
| RC-P35-VTCT07-VTCR071812 | VT.CR.07.1812 | 125 | 30/35 | 25 | R12 | 4 | ||
| RC-P35-VTCT07-VTCT072512 | VT.CT.07.2512 | 125 | 30/35 | 25 | R12 | 4 | ||
| RC-P35-VTCT07-VTCT072515 | VT.CT.07.2515 | 125 | 30/35 | 25 | R15 | 4 | ||
| RC-P35-VTCT07-VTCT073618 | VT.CT.07.3618 | 125 | 30/35 | 36 | R18 | 4 | ||
| RC-P35-VTCT07-VTCT073625 | VT.CT.07.3625 | 125 | 30/35 | 35 | R25 | 4 |
Technical and selection notes
The printed source anomaly VT.CR.07.1812 is preserved exactly even though the verified family code is VT.CT.07. No source-code normalization has been applied.
Reference catalog: pages 45, 46. View catalog ↗
