FAMILY FRM-TAP

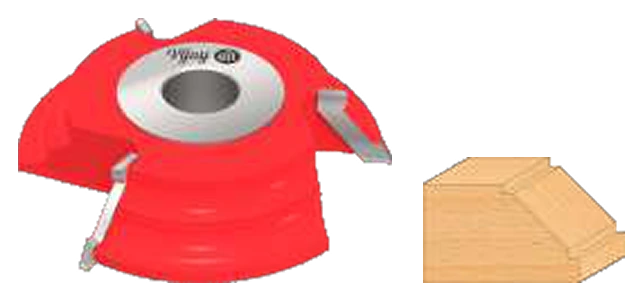

Tapper With Degree Frame Cutter
Use for
Taper/profile frame cutting using the verified frame-cutter geometry. Select by wood-size profile and cutter thickness; no additional taper angle is inferred because the controlled structured data does not publish a separate degree field for these six rows.
Precision dimensionsExact SKU selectionQuote on request
6 available variants
Wood SizeCutter thicknessDiameter (D)BoreTeeth
Choose your dimensions.
Wood Size × Cutter Thickness × Diameter × Bore × Teeth (mm)
6 variants shownView quote list (0) →
| Rakecraft SKU | Code no. | Wood Size | Cutter thickness | Diameter (D) | Bore | Teeth | Quantity | Select |
|---|---|---|---|---|---|---|---|---|
| RC-P20-FRM-2098A | 2098A | 15x15 | 12 | 125 | 25.4 | 3 | ||
| RC-P20-FRM-2098B | 2098B | 18x18 | 15 | 125 | 25.4 | 3 | ||
| RC-P20-FRM-2098C | 2098C | 20x20 | 17 | 125 | 25.4 | 3 | ||
| RC-P20-FRM-2098D | 2098D | 22x22 | 19 | 125 | 25.4 | 3 | ||
| RC-P20-FRM-2098E | 2098E | 25x25 | 22 | 125 | 25.4 | 3 | ||
| RC-P20-FRM-2098F | 2098F | 28x28 | 25 | 125 | 25.4 | 3 |
Technical and selection notes
The source family name contains “Degree,” but the controlled structured rows contain no separate angle value. The catalogue therefore publishes only verified dimensions and does not invent an angle specification.
Reference catalog: pages 37. View catalog ↗
