FAMILY VT.CM.28

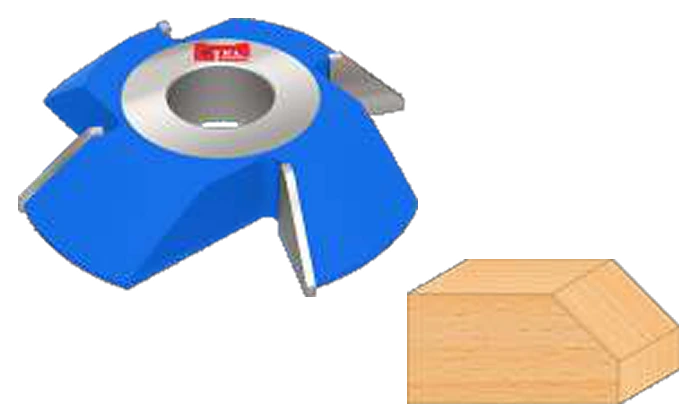

T.C.T Chamfer Milling Cutter 45°
Use for
45° chamfer milling in solid wood and panel materials on spindle moulders and shaper machines. Select by verified diameter, wood thickness and tooth count.
Precision dimensionsExact SKU selectionQuote on request
8 available variants
Diameter (D)BoreWoodTeeth
Choose your dimensions.
Diameter × Bore × Wood Thickness × Teeth (mm)
8 variants shownView quote list (0) →
| Rakecraft SKU | Code no. | Diameter (D) | Bore | Wood | Teeth | Quantity | Select |
|---|---|---|---|---|---|---|---|
| RC-P36-VTCM28-VTCM28101Z3 | VT.CM.28.101-Z3 | 125 | 30/35 | 25 | 3 | ||
| RC-P36-VTCM28-VTCM28102Z3 | VT.CM.28.102-Z3 | 125 | 30/35 | 30 | 3 | ||
| RC-P36-VTCM28-VTCM28103Z3 | VT.CM.28.103-Z3 | 150 | 30/35 | 40 | 3 | ||
| RC-P36-VTCM28-VTCM28104Z3 | VT.CM.28.104-Z3 | 175 | 30/35 | 50 | 3 | ||
| RC-P36-VTCM28-VTCM28101Z4 | VT.CM.28.101-Z4 | 125 | 30/35 | 25 | 4 | ||
| RC-P36-VTCM28-VTCM28102Z4 | VT.CM.28.102-Z4 | 125 | 30/35 | 30 | 4 | ||
| RC-P36-VTCM28-VTCM28103Z4 | VT.CM.28.103-Z4 | 150 | 30/35 | 40 | 4 | ||
| RC-P36-VTCM28-VTCM28104Z4 | VT.CM.28.104-Z4 | 175 | 30/35 | 50 | 4 |
Technical and selection notes
The family title supplies the verified 45° geometry; the structured variant table preserves diameter, compound bore, wood thickness and tooth count exactly.
Reference catalog: pages 48. View catalog ↗
