FAMILY VT.HL.JP

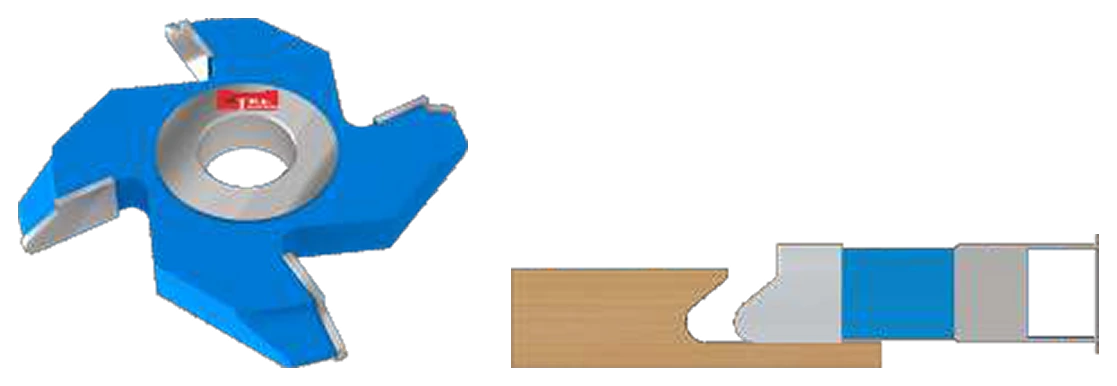

T.C.T Brazed J Profile Cutter — Spindle Moulder
Use for
J-profile machining for handleless shutters in MDF, plywood, particle board and solid wood on spindle-moulder machines. Select by verified cutter diameter and tooth count while retaining the common board-thickness and profile-length values.
Precision dimensionsExact SKU selectionQuote on request
5 available variants
Diameter (D)BoreBoard ThickProfile LTeeth
Choose your dimensions.
Diameter × Bore × Board Thickness × Profile Length × Teeth (mm)
5 variants shownView quote list (0) →
| Rakecraft SKU | Code no. | Diameter (D) | Bore | Board Thick | Profile L | Teeth | Quantity | Select |
|---|---|---|---|---|---|---|---|---|
| RC-P33-HLJP-VTHLJP101 | VT.HL.JP.101 | 150 | 30/35 | 18 | 30-45 | 4 | ||
| RC-P33-HLJP-VTHLJP102 | VT.HL.JP.102 | 175 | 30/35 | 18 | 30-45 | 4 | ||
| RC-P33-HLJP-VTHLJP103 | VT.HL.JP.103 | 150 | 30/35 | 18 | 30-45 | 6 | ||
| RC-P33-HLJP-VTHLJP104 | VT.HL.JP.104 | 175 | 30/35 | 18 | 30-45 | 6 | ||
| RC-P33-HLJP-VTHLJP105 | VT.HL.JP.105 | 125 | 30/35 | 18 | 19 | 4 |
Technical and selection notes
The VT.HL.JP.105 variant uses a verified 19 mm profile length, unlike the 30-45 mm range on VT.HL.JP.101–104. Compound bore 30/35 is preserved exactly.
Reference catalog: pages 40, 41. View catalog ↗
