FAMILY VT.HR.05

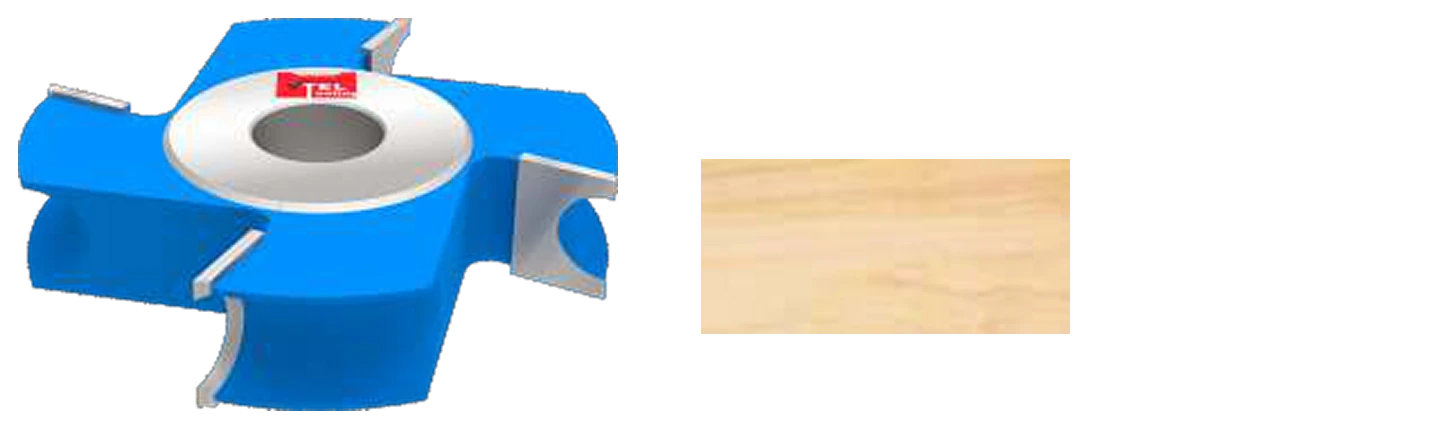

T.C.T Brazed Half Radius Cutter
Use for
Request a supplier-confirmed specification for t.c.t brazed half radius cutter. Material compatibility and performance have not yet been verified by Rakecraft.
Reference dimensionsExact SKU selectionQuote on request
5 reference variants
VT.HR.05T.C.T Brazed Half Radius Cutter
Diameter (D)BoreThicknessRadiusTeeth
Choose your dimensions.

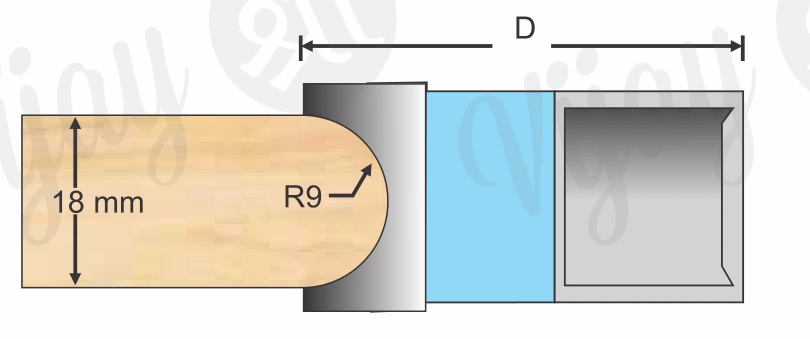

Diameter × Bore × Thickness × Radius × Teeth (mm)
5 variants shownView quote list (0) →
| Rakecraft SKU | Code no. | Diameter (D) | Bore | Thickness | Radius | Teeth | Quantity | Select |
|---|---|---|---|---|---|---|---|---|
| RC-P34-HR05-VTHR051809 | VT.HR.05.1809 | 125 | 30/35 | 18 | 9R | 4 | ||
| RC-P34-HR05-VTHR052512 | VT.HR.05.2512 | 125 | 30/35 | 25 | 12.5R | 4 | ||
| RC-P34-HR05-VTHR053015 | VT.HR.05.3015 | 125 | 30/35 | 30 | 15R | 4 | ||
| RC-P34-HR05-VTHR053618 | VT.HR.05.3618 | 125 | 30/35 | 36 | 18R | 4 | ||
| RC-P34-HR05-VTHR055025 | VT.HR.05.5025 | 140 | 30/35 | 50 | 25R | 4 |
Technical and selection notes
Reference dimensions require supplier and buyer confirmation before ordering. No stock, manufacturing, warranty or performance claim is made.
Reference catalog: pages 46, 47. Return to reference catalog →
