FAMILY 120-A

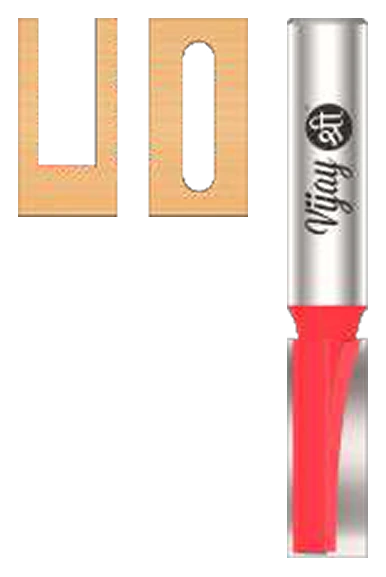

Straight Bits (Cleaning Bottom Bits)
Use for
Straight cleaning-bottom router bits for routing, trimming, pocketing and flat-bottom machining operations where the selected cutter diameter, cutting length and shank size match the machine, collet and workpiece requirement. Select by the verified dimensions below. Rakecraft SKU and original source code are retained separately for traceability.
Precision dimensionsExact SKU selectionQuote on request
58 available variants
Dia (mm)Cutting Length (mm)Shank (mm)
Choose your dimensions.
Published configurations
58 variants shownView quote list (0) →
| Rakecraft SKU | Code no. | Dia (mm) | Cutting Length (mm) | Shank (mm) | Quantity | Select |
|---|---|---|---|---|---|---|
| RC-P12-120A-120 | 120 | 6 | 15 | 8 | ||
| RC-P12-120A-120AA | 120 - AA | 6 | 15 | 6 | ||
| RC-P12-120A-120AB | 120 - AB | 6 | 15 | 6.35 | ||
| RC-P12-120A-402 | 402 | 6 | 15 | 12 | ||
| RC-P12-120A-120A | 120 - A | 4 | 12 | 8 | ||
| RC-P12-120A-120B | 120 - B | 4 | 12 | 6 | ||
| RC-P12-120A-120C | 120 - C | 4 | 12 | 6.35 | ||
| RC-P12-120A-401 | 401 | 4 | 12 | 12 | ||
| RC-P12-120A-121 | 121 | 8 | 20 | 8 | ||
| RC-P12-120A-121A | 121 - A | 8 | 20 | 6 | ||
| RC-P12-120A-121B | 121 - B | 8 | 20 | 6.35 | ||
| RC-P12-120A-403 | 403 | 8 | 20 | 12 | ||
| RC-P12-120A-121D | 121 - D | 8 | 30 | 8 | ||
| RC-P12-120A-404 | 404 | 8 | 30 | 12 | ||
| RC-P12-120A-121F | 121 - F | 8 | 35 | 8 | ||
| RC-P12-120A-405 | 405 | 8 | 35 | 12 | ||
| RC-P12-120A-122 | 122 | 10 | 20 | 8 | ||
| RC-P12-120A-122A | 122 - A | 10 | 20 | 6 | ||
| RC-P12-120A-122B | 122 - B | 10 | 20 | 6.35 | ||
| RC-P12-120A-406 | 406 | 10 | 20 | 12 | ||
| RC-P12-120A-122D | 122 - D | 10 | 30 | 8 | ||
| RC-P12-120A-407 | 407 | 10 | 30 | 12 | ||
| RC-P12-120A-122F | 122 - F | 10 | 38 | 8 | ||
| RC-P12-120A-408 | 408 | 10 | 38 | 12 | ||
| RC-P12-120A-122H | 122 - H | 10 | 50 | 8 | ||
| RC-P12-120A-409 | 409 | 10 | 50 | 12 | ||
| RC-P12-120A-123 | 123 | 12 | 20 | 8 | ||
| RC-P12-120A-123A | 123 - A | 12 | 20 | 6 | ||
| RC-P12-120A-123B | 123 - B | 12 | 20 | 6.35 | ||
| RC-P12-120A-410 | 410 | 12 | 20 | 12 | ||
| RC-P12-120A-123D | 123 - D | 12 | 30 | 8 | ||
| RC-P12-120A-411 | 411 | 12 | 30 | 12 | ||
| RC-P12-120A-123F | 123 - F | 12 | 30 | 12.7 | ||
| RC-P12-120A-123G | 123 - G | 12 | 38 | 8 | ||
| RC-P12-120A-412 | 412 | 12 | 38 | 12 | ||
| RC-P12-120A-123I | 123 - I | 12 | 50 | 8 | ||
| RC-P12-120A-413 | 413 | 12 | 50 | 12 | ||
| RC-P12-120A-414 | 414 | 12 | 63 | 12 | ||
| RC-P12-120A-414A | 414 - A | 12 | 75 | 12 | ||
| RC-P12-120A-124A | 124 - A | 15 | 20 | 8 | ||
| RC-P12-120A-124B | 124 - B | 15 | 20 | 12 | ||
| RC-P12-120A-124C | 124 - C | 15 | 32 | 8 | ||
| RC-P12-120A-414B | 414 - B | 15 | 32 | 12 | ||
| RC-P12-120A-124E | 124 - E | 15 | 50 | 12 | ||
| RC-P12-120A-124F | 124 - F | 15 | 63 | 12 | ||
| RC-P12-120A-124G | 124 - G | 15 | 75 | 12 | ||
| RC-P12-120A-124 | 124 | 19 | 25 | 8 | ||
| RC-P12-120A-419 | 419 | 19 | 25 | 12 | ||
| RC-P12-120A-124AB | 124 - AB | 19 | 38 | 8 | ||
| RC-P12-120A-420 | 420 | 19 | 38 | 12 | ||
| RC-P12-120A-421 | 421 | 19 | 50 | 12 | ||
| RC-P12-120A-125 | 125 | 25 | 25 | 8 | ||
| RC-P12-120A-422 | 422 | 25 | 25 | 12 | ||
| RC-P12-120A-423 | 423 | 25 | 38 | 12 | ||
| RC-P12-120A-424 | 424 | 25 | 50 | 12 | ||
| RC-P12-120A-125AA | 125-AA | 30 | 25 | 12 | ||
| RC-P12-120A-125BA | 125-BA | 32 | 25 | 12 | ||
| RC-P12-120A-125CA | 125-CA | 35 | 25 | 12 |
Technical and selection notes
Dimensions and source codes above are reproduced from the catalogue Rakecraft master. Confirm machine compatibility, collet/shank fit, workholding and operating parameters before use.
Reference catalog: pages 74, 75, 76. View catalog ↗
