FAMILY FRM-OGF

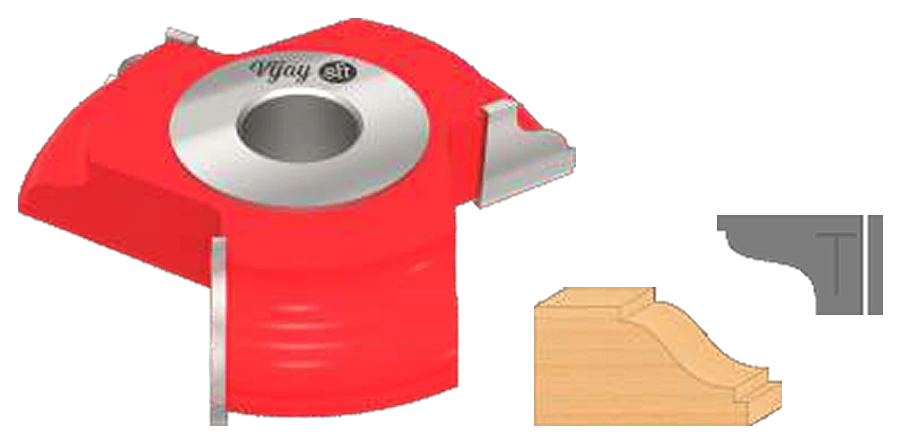

Ogee Fillet Frame Cutter
Use for
Ogee-fillet frame and decorative profile cutting. Select by verified wood-size profile and cutter thickness while retaining the common 125 mm diameter, 25.4 mm bore and three-tooth geometry.
Precision dimensionsExact SKU selectionQuote on request
21 available variants
Wood SizeCutter thicknessDiameter (D)BoreTeeth
Choose your dimensions.
Wood Size × Cutter Thickness × Diameter × Bore × Teeth (mm)
21 variants shownView quote list (0) →
| Rakecraft SKU | Code no. | Wood Size | Cutter thickness | Diameter (D) | Bore | Teeth | Quantity | Select |
|---|---|---|---|---|---|---|---|---|
| RC-P19-FRM-2057 | 2057 | 15x15 | 12 | 125 | 25.4 | 3 | ||
| RC-P19-FRM-2058 | 2058 | 18x18 | 15 | 125 | 25.4 | 3 | ||
| RC-P19-FRM-2059 | 2059 | 20x20 | 17 | 125 | 25.4 | 3 | ||
| RC-P19-FRM-2060 | 2060 | 22x22 | 19 | 125 | 25.4 | 3 | ||
| RC-P19-FRM-2061 | 2061 | 25x25 | 22 | 125 | 25.4 | 3 | ||
| RC-P19-FRM-2062 | 2062 | 28x15 | 25 | 125 | 25.4 | 3 | ||
| RC-P19-FRM-2063 | 2063 | 28x28 | 25 | 125 | 25.4 | 3 | ||
| RC-P19-FRM-2064 | 2064 | 32x18 | 28 | 125 | 25.4 | 3 | ||
| RC-P19-FRM-2065 | 2065 | 32x32 | 28 | 125 | 25.4 | 3 | ||
| RC-P19-FRM-2066 | 2066 | 36x15 | 32 | 125 | 25.4 | 3 | ||
| RC-P19-FRM-2067 | 2067 | 36x18 | 32 | 125 | 25.4 | 3 | ||
| RC-P19-FRM-2068 | 2068 | 36x22 | 32 | 125 | 25.4 | 3 | ||
| RC-P19-FRM-2069 | 2069 | 36x28 | 32 | 125 | 25.4 | 3 | ||
| RC-P19-FRM-2071 | 2071 | 36x36 | 32 | 125 | 25.4 | 3 | ||
| RC-P19-FRM-2071A | 2071-A | 44x44 | 38 | 125 | 25.4 | 3 | ||
| RC-P20-FRM-2085 | 2085 | 15x15 | 12 | 125 | 25.4 | 3 | ||
| RC-P20-FRM-2086 | 2086 | 18x18 | 15 | 125 | 25.4 | 3 | ||
| RC-P20-FRM-2087 | 2087 | 20x20 | 17 | 125 | 25.4 | 3 | ||
| RC-P20-FRM-2088 | 2088 | 22x22 | 19 | 125 | 25.4 | 3 | ||
| RC-P20-FRM-2089 | 2089 | 25x25 | 22 | 125 | 25.4 | 3 | ||
| RC-P20-FRM-2090 | 2090 | 28x15 | 25 | 125 | 25.4 | 3 |
Technical and selection notes
Page-19 and Page-20 source occurrences are published together as one verified Ogee Fillet Frame Cutter family while Rakecraft SKU and original source code remain separate for traceability.
Reference catalog: pages 36. View catalog ↗
