FAMILY VT.MJ.30

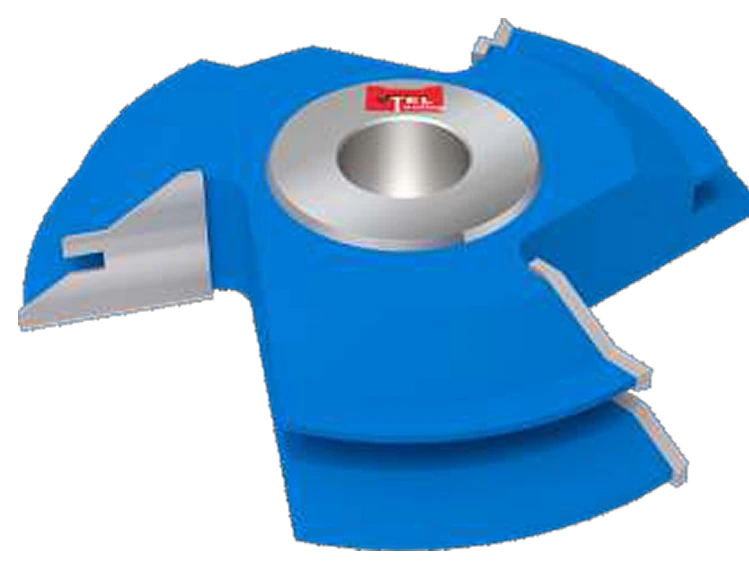

Miter Joint Cutter 45 Deg
Use for
Miter-joint profiling for solid wood and panel material. Select by verified tooth count and source code while retaining the common 150 mm diameter, 30/35 mm compound bore and 32 mm wood-thickness value.
Precision dimensionsExact SKU selectionQuote on request
4 available variants
Diameter (D)BoreWood ThickAngleTeeth
Choose your dimensions.
Diameter × Bore × Wood Thickness × Angle × Teeth (mm / source angle value)
4 variants shownView quote list (0) →
| Rakecraft SKU | Code no. | Diameter (D) | Bore | Wood Thick | Angle | Teeth | Quantity | Select |
|---|---|---|---|---|---|---|---|---|
| RC-P43-VTMJ30-VTMJ30101Z3 | VT.MJ.30.101-Z3 | 150 | 30/35 | 32 | 6/12 | 3 | ||
| RC-P43-VTMJ30-VTMJ30102Z3 | VT.MJ.30.102-Z3 | 150 | 30/35 | 32 | 6/12 | 3 | ||
| RC-P43-VTMJ30-VTMJ30101Z4 | VT.MJ.30.101-Z4 | 150 | 30/35 | 32 | 6/12 | 4 | ||
| RC-P43-VTMJ30-VTMJ30102Z4 | VT.MJ.30.102-Z4 | 150 | 30/35 | 32 | 6/12 | 4 |
Technical and selection notes
The source records the angle field as 6/12. It is reproduced exactly rather than converted or interpreted. The .101/.102 and Z3/Z4 source-code distinctions remain separate commercial selections.
Reference catalog: pages 34. View catalog ↗
