FAMILY 901

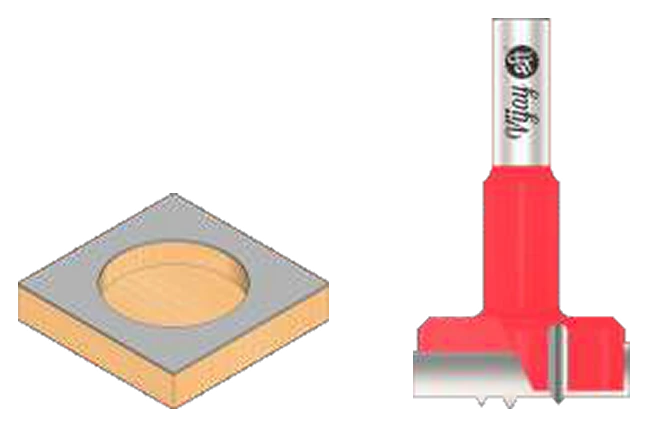

Hinge Boring Bits
Use for
Router-format hinge-boring range from the catalogue Page-16 source table. Select by verified cutter diameter and shank diameter. All variants retain the verified 55 mm shank-length field. This family is separate from the Page-9 multi-boring hinge-bit family.
Precision dimensionsExact SKU selectionQuote on request
30 available variants
Diameter (D)Shank (S)Shank Length
Choose your dimensions.
Diameter × Shank Diameter × Shank Length (mm)
30 variants shownView quote list (0) →
| Rakecraft SKU | Code no. | Diameter (D) | Shank (S) | Shank Length | Quantity | Select |
|---|---|---|---|---|---|---|
| RC-P16-901-901 | 901 | 16 | 10 | 55 | ||
| RC-P16-901-902 | 902 | 19 | 10 | 55 | ||
| RC-P16-901-903 | 903 | 20 | 10 | 55 | ||
| RC-P16-901-904 | 904 | 22 | 10 | 55 | ||
| RC-P16-901-905 | 905 | 25 | 10 | 55 | ||
| RC-P16-901-906 | 906 | 28 | 10 | 55 | ||
| RC-P16-901-907 | 907 | 30 | 10 | 55 | ||
| RC-P16-901-908 | 908 | 32 | 10 | 55 | ||
| RC-P16-901-909 | 909 | 34 | 10 | 55 | ||
| RC-P16-901-910 | 910 | 35 | 10 | 55 | ||
| RC-P16-901-911 | 911 | 36 | 10 | 55 | ||
| RC-P16-901-912 | 912 | 38 | 10 | 55 | ||
| RC-P16-901-913 | 913 | 40 | 10 | 55 | ||
| RC-P16-901-914 | 914 | 42 | 10 | 55 | ||
| RC-P16-901-915 | 915 | 45 | 10 | 55 | ||
| RC-P16-901-916 | 916 | 48 | 10 | 55 | ||
| RC-P16-901-917 | 917 | 50 | 10 | 55 | ||
| RC-P16-901-918 | 918 | 52 | 10 | 55 | ||
| RC-P16-901-919 | 919 | 55 | 10 | 55 | ||
| RC-P16-901-920 | 920 | 58 | 10 | 55 | ||
| RC-P16-901-921 | 921 | 60 | 10 | 55 | ||
| RC-P16-901-922 | 922 | 63.5 | 10 | 55 | ||
| RC-P16-901-923 | 923 | 65 | 12 | 55 | ||
| RC-P16-901-924 | 924 | 70 | 12 | 55 | ||
| RC-P16-901-925 | 925 | 75 | 12 | 55 | ||
| RC-P16-901-926 | 926 | 80 | 12 | 55 | ||
| RC-P16-901-927 | 927 | 85 | 12 | 55 | ||
| RC-P16-901-928 | 928 | 90 | 12 | 55 | ||
| RC-P16-901-929 | 929 | 95 | 12 | 55 | ||
| RC-P16-901-930 | 930 | 100 | 12 | 55 |
Technical and selection notes
The 10 mm shank group runs through source 922; source 923–930 use the verified 12 mm shank. The 63.5 mm diameter on source 922 is preserved exactly. No dimensions are inferred or normalized.
Reference catalog: pages 73, 74. View catalog ↗
