FAMILY 163A

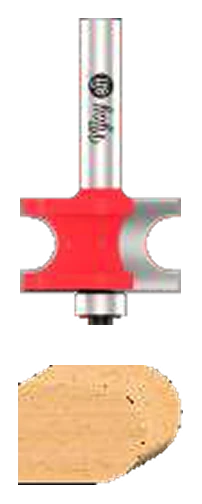

Half Radius Bits
Use for
Half-radius profile routing. The source schema is retained as Radius / Wood / Diameter / Shank.
Precision dimensionsExact SKU selectionQuote on request
8 available variants
RadiusWoodDiameter (D)Shank (S)
Choose your dimensions.
Published configurations
8 variants shownView quote list (0) →
| Rakecraft SKU | Code no. | Radius | Wood | Diameter (D) | Shank (S) | Quantity | Select |
|---|---|---|---|---|---|---|---|
| RC-P13-163A-163A | 163-A | 3R | 6 | 23 | 8 | ||
| RC-P13-163A-163 | 163 | 4R | 8 | 25 | 8 | ||
| RC-P13-163A-164 | 164 | 5R | 10 | 27 | 8 | ||
| RC-P13-163A-165 | 165 | 6R | 12 | 29 | 8 | ||
| RC-P13-163A-166 | 166 | 7.5R | 15 | 32 | 8 | ||
| RC-P13-163A-166A | 166-A | 9.5R | 19 | 36 | 12 | ||
| RC-P13-163A-166B | 166-B | 11R | 22 | 39 | 12 | ||
| RC-P13-163A-166C | 166-C | 12.5R | 25 | 42 | 12 |
Technical and selection notes
Radius notation is preserved exactly, including half-millimetre values.
Reference catalog: pages 71, 72. View catalog ↗
