FAMILY 2001

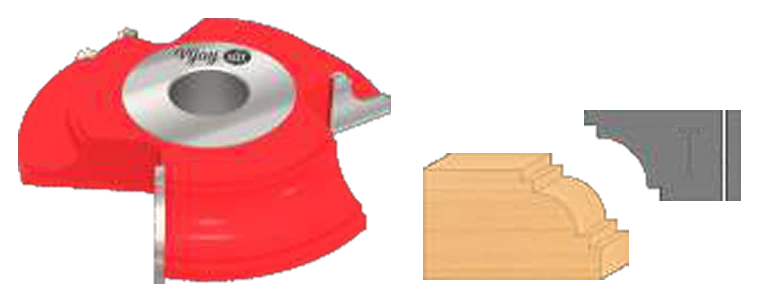

Double Fillet Cove Frame Cutter
Use for
Request a supplier-confirmed specification for double fillet cove frame cutter. Material compatibility and performance have not yet been verified by Rakecraft.
Reference dimensionsExact SKU selectionQuote on request
15 reference variants
2001Double Fillet Cove Frame Cutter
Wood SizeCutter thicknessDiameter (D)BoreTeeth
Choose your dimensions.
Wood Size × Cutter Thickness × Diameter × Bore × Teeth (mm)
15 variants shownView quote list (0) →
| Rakecraft SKU | Code no. | Wood Size | Cutter thickness | Diameter (D) | Bore | Teeth | Quantity | Select |
|---|---|---|---|---|---|---|---|---|
| RC-P19-DFC-2001 | 2001 | 15x15 | 12 | 125 | 25.4 | 3 | ||
| RC-P19-DFC-2002 | 2002 | 18x18 | 15 | 125 | 25.4 | 3 | ||
| RC-P19-DFC-2003 | 2003 | 20x20 | 17 | 125 | 25.4 | 3 | ||
| RC-P19-DFC-2004 | 2004 | 22x22 | 19 | 125 | 25.4 | 3 | ||
| RC-P19-DFC-2005 | 2005 | 25x25 | 22 | 125 | 25.4 | 3 | ||
| RC-P19-DFC-2006 | 2006 | 28x15 | 25 | 125 | 25.4 | 3 | ||
| RC-P19-DFC-2007 | 2007 | 28x28 | 25 | 125 | 25.4 | 3 | ||
| RC-P19-DFC-2008 | 2008 | 32x18 | 28 | 125 | 25.4 | 3 | ||
| RC-P19-DFC-2009 | 2009 | 32x32 | 28 | 125 | 25.4 | 3 | ||
| RC-P19-DFC-2010 | 2010 | 36x15 | 32 | 125 | 25.4 | 3 | ||
| RC-P19-DFC-2011 | 2011 | 36x18 | 32 | 125 | 25.4 | 3 | ||
| RC-P19-DFC-2012 | 2012 | 36x22 | 32 | 125 | 25.4 | 3 | ||
| RC-P19-DFC-2013 | 2013 | 36x28 | 32 | 125 | 25.4 | 3 | ||
| RC-P19-DFC-2014 | 2014 | 36x36 | 32 | 125 | 25.4 | 3 | ||
| RC-P19-DFC-2014A | 2014-A | 44x44 | 38 | 125 | 25.4 | 3 |
Technical and selection notes
Reference dimensions require supplier and buyer confirmation before ordering. No stock, manufacturing, warranty or performance claim is made.
Reference catalog: pages 52. Return to reference catalog →
