FAMILY VT.DC.25

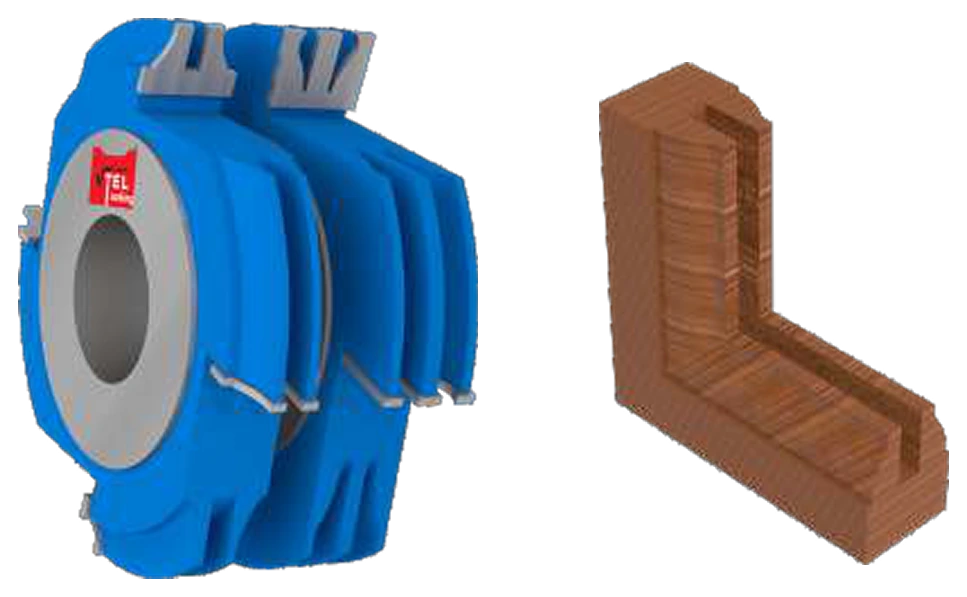

Cutter Head Set For Door
Use for
Door-profile cutter-head set for solid wood and panel material on spindle moulders. Select by verified source code; all variants retain the common controlled geometry.
Precision dimensionsExact SKU selectionQuote on request
6 available variants
Diameter (D)BoreWood ThickTeeth
Choose your dimensions.

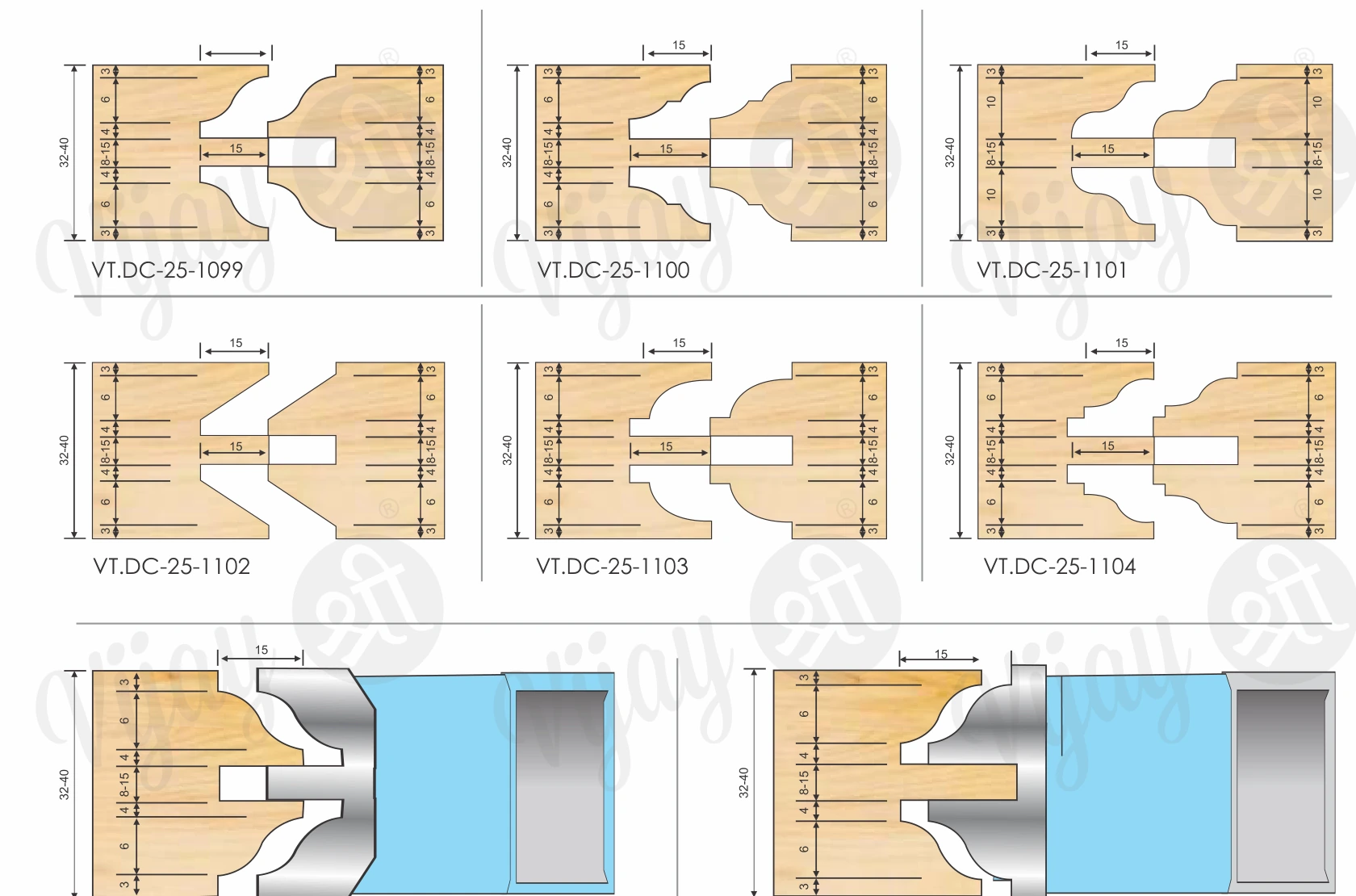

Diameter × Bore × Wood Thickness × Teeth (mm)
6 variants shownView quote list (0) →
| Rakecraft SKU | Code no. | Diameter (D) | Bore | Wood Thick | Teeth | Quantity | Select |
|---|---|---|---|---|---|---|---|
| RC-P40-VTDC25-VTDC251099 | VT.DC.25.1099 | 125 | 30/35 | 32-40 | 4 | ||
| RC-P40-VTDC25-VTDC251100 | VT.DC.25.1100 | 125 | 30/35 | 32-40 | 4 | ||
| RC-P40-VTDC25-VTDC251101 | VT.DC.25.1101 | 125 | 30/35 | 32-40 | 4 | ||
| RC-P40-VTDC25-VTDC251102 | VT.DC.25.1102 | 125 | 30/35 | 32-40 | 4 | ||
| RC-P40-VTDC25-VTDC251103 | VT.DC.25.1103 | 125 | 30/35 | 32-40 | 4 | ||
| RC-P40-VTDC25-VTDC251104 | VT.DC.25.1104 | 125 | 30/35 | 32-40 | 4 |
Technical and selection notes
The 30/35 compound bore and all source codes are reproduced exactly from the controlled technical master.
Reference catalog: pages 37. View catalog ↗
