FAMILY FRM-COG / FRM-COG2

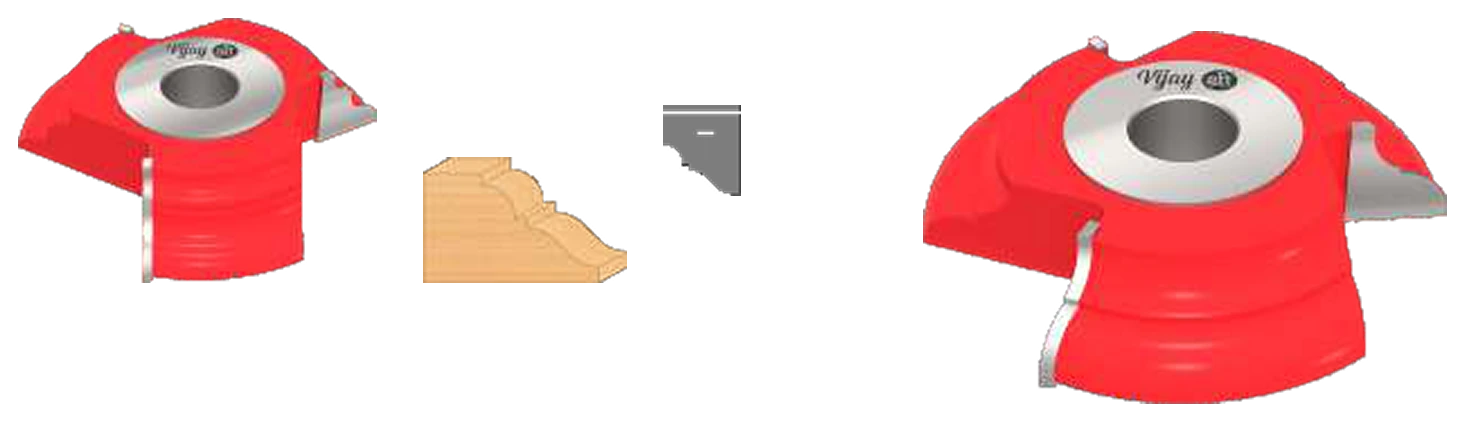

Classical Ogee Frame Cutter
Use for
Frame and decorative profile cutting using the verified 125 mm diameter, 25.4 mm bore and three-tooth cutter geometry. Select by wood-size profile and cutter thickness; the two controlled source-family code blocks remain traceable within one commercial family page.
Precision dimensionsExact SKU selectionQuote on request
23 available variants
Wood SizeCutter thicknessDiameter (D)BoreTeeth
Choose your dimensions.
Wood Size × Cutter Thickness × Diameter × Bore × Teeth (mm)
23 variants shownView quote list (0) →
| Rakecraft SKU | Code no. | Wood Size | Cutter thickness | Diameter (D) | Bore | Teeth | Quantity | Select |
|---|---|---|---|---|---|---|---|---|
| RC-P20-FRM-2071 | 2071 | 15x15 | 12 | 125 | 25.4 | 3 | ||
| RC-P20-FRM-2072 | 2072 | 18x18 | 15 | 125 | 25.4 | 3 | ||
| RC-P20-FRM-2073 | 2073 | 20x20 | 17 | 125 | 25.4 | 3 | ||
| RC-P20-FRM-2074 | 2074 | 22x22 | 19 | 125 | 25.4 | 3 | ||
| RC-P20-FRM-2075 | 2075 | 25x25 | 22 | 125 | 25.4 | 3 | ||
| RC-P20-FRM-2076 | 2076 | 28x15 | 25 | 125 | 25.4 | 3 | ||
| RC-P20-FRM-2077 | 2077 | 28x28 | 25 | 125 | 25.4 | 3 | ||
| RC-P20-FRM-2078 | 2078 | 32x18 | 28 | 125 | 25.4 | 3 | ||
| RC-P20-FRM-2079 | 2079 | 32x32 | 28 | 125 | 25.4 | 3 | ||
| RC-P20-FRM-2080 | 2080 | 36x15 | 32 | 125 | 25.4 | 3 | ||
| RC-P20-FRM-2081 | 2081 | 36x18 | 32 | 125 | 25.4 | 3 | ||
| RC-P20-FRM-2082 | 2082 | 36x22 | 32 | 125 | 25.4 | 3 | ||
| RC-P20-FRM-2083 | 2083 | 36x28 | 32 | 125 | 25.4 | 3 | ||
| RC-P20-FRM-2084 | 2084 | 36x36 | 32 | 125 | 25.4 | 3 | ||
| RC-P20-FRM-2084A | 2084-A | 44x44 | 38 | 125 | 25.4 | 3 | ||
| RC-P20-FRM-2091 | 2091 | 15x15 | 12 | 125 | 25.4 | 3 | ||
| RC-P20-FRM-2092 | 2092 | 18x18 | 15 | 125 | 25.4 | 3 | ||
| RC-P20-FRM-2093 | 2093 | 20x20 | 17 | 125 | 25.4 | 3 | ||
| RC-P20-FRM-2094 | 2094 | 22x22 | 19 | 125 | 25.4 | 3 | ||
| RC-P20-FRM-2095 | 2095 | 25x25 | 22 | 125 | 25.4 | 3 | ||
| RC-P20-FRM-2096 | 2096 | 28x15 | 25 | 125 | 25.4 | 3 | ||
| RC-P20-FRM-2097 | 2097 | 28x28 | 25 | 125 | 25.4 | 3 | ||
| RC-P20-FRM-2098 | 2098 | 32x18 | 28 | 125 | 25.4 | 3 |
Technical and selection notes
The controlled technical master contains two source-family code groups under the same commercial Classical Ogee Frame Cutter name. They are consolidated on this page without merging or renumbering their original source codes.
Reference catalog: pages 35, 36. View catalog ↗
